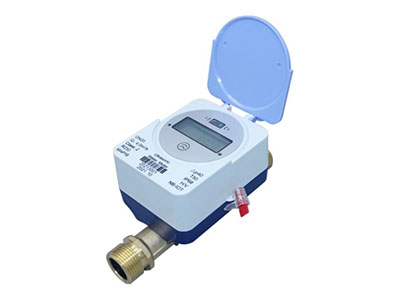

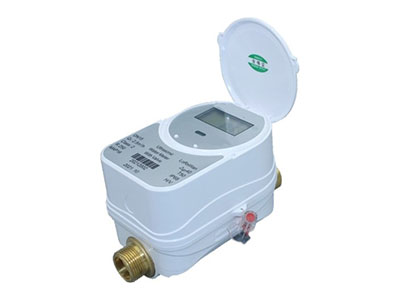

LXC Series Ultrasonic Water Meter

Huazigenchuang LXC series ultrasonic water meters are developed based on the ultrasonic measurement principle of propagation speed difference method. This instrument integrates measurement, accumulation, and display, uses low-power consumption technology, and a single battery can be used for more than 6 years. It can achieve accurate measurement of the minimum flow rate of 0.01m³/h, and the instrument has the characteristics of small size, good stability, and strong anti-interference ability.

Customer Service:

Email:

Category:

Water Metering Devices

Keywords:

Product Details

Features

It adopts ultrasonic flow measurement technology, which allows for multi-angle installation without affecting the meter's measurement, while minimizing pipeline pressure loss.
The ultrasonic water meter has no mechanical moving parts in the pipeline structure, no mechanical wear and tear, and is conducive to long-term use.
It has the functions of rectifying and stabilizing the measured water flow, and is not affected by the turbulence and disturbance of the water flow, making the measurement more accurate and reliable.
The pipeline structure is simple, with low pressure loss, linear flow rate, high pressure resistance, and good sealing performance.
The pipeline uses environmentally friendly copper, red punching forging, and CNC precision machining.
It enters automatic power-saving mode when the pipe is empty or the fluid is stationary for a long time.
It has a data storage chip E2PROM, storing 18 months of historical data.
Real-time data saving: cumulative flow, flow rate, and other data are saved regularly.
It has the function of automatic time-shifted valve cleaning, arrears reminder, and arrears valve closure, ensuring the water supply collection rate, and the management system can be remotely controlled.
The specially designed signal sampling circuit ensures that the signal will not be distorted under different conditions, thus ensuring the accuracy and reliability of the measured parameters.

Product Execution Standard:

《GB⁄T 778.1-2018 Drinking Cold Water Meters and Hot Water Meters Part 1: Metrological Requirements and Technical Requirements》《GB⁄T 778.2-2018 Drinking Cold Water Meters and Hot Water Meters Part 2: Test Methods》.

Factory Calibration Basis:

National Metrology Calibration Regulations of the People's Republic of China 《JJG162-2019 Cold Water Meter Calibration Regulations》 standard.

Main Technical Indicators

Small Diameter Ultrasonic Water Meter

Nominal Diameter	DN15	DN20	DN25	DN32	DN40
Pipe Length	165mm	195mm	225mm	180mm	200mm
Q3 (m3/h)	2.5	4	6.3	10	16
Starting Flow	2	2	3	5	7
Range Ratio	Q3/Q1=125/160/200/250/400 Optional (default 250)
Medium to be Measured	Water, homogeneous liquid, and fill the pipe to be measured.
Accuracy Grade	Grade 2
Measurement Accuracy	High Zone (Q2≤Q≤Q4) ±2%, Low Zone (Q1≤Q≤Q2) ±4%
Pressure Grade	MAP16
Pressure Loss Grade	Δp40
Temperature Grade	T30
Upstream Flow Field Sensitivity Grade	U0
Downstream Flow Field Sensitivity Grade	D0
Climate and Mechanical Environment Grade	Grade B
Electromagnetic Compatibility Grade	Grade E1
Working Power Supply	DC3.6V Lithium Battery (built-in)
Protection Grade	lP68
Working Environment	Temperature -15℃~+55℃, Relative Humidity ≤90%
Data Storage	Storage of faults, alarms, and flow information: Hourly water consumption records, stored for 14 days; daily cumulative logs, stored for 366 days; Monthly cumulative logs, stored for 72 months, data can be saved permanently.
Power Failure Protection	After power failure, the cumulative flow and corresponding time recorded before power failure can be saved. After power restoration, the metering function is automatically restored.
Remote Transmission Method	Infrared/rs-485/M-Bus/NB-IoT/LoRa/4-20mA/Pulse
Installation Position	Horizontal or Vertical
Durability	≥6 years

Large Diameter Ultrasonic Water Meter

Nominal Diameter	DN (50、65、80、100、125、150、200、250、300、400、500、600)
Pipe Length	mm (200、200、225、250、250、300、350、450、500、600、600、800)
Q3 (m3/h)	63、63、100、160、160、250、400、630、1000、1600、2500、4000
Starting Flow	7、12、18、28、44、64、113、177、254、452、707、1018
Range Ratio	Q3/Q1=160/200/250/400/500 Optional (default 500)
Medium to be Measured	Water, homogeneous liquid, and fill the pipe to be measured.
Accuracy Grade	Grade 2
Pressure Grade	MAp16
Pressure Loss Grade	Δp40
Climate and Mechanical Environment Grade	Grade B
Electromagnetic Compatibility Grade	Grade E1
Working Power Supply	DC24V
Protection Grade	lp68
Working Environment	Temperature -25℃~+55℃, Relative Humidity ≤90%
Data Storage	Continuous storage of the previous 18 months of historical records
Power Failure Protection	After power failure, the cumulative flow and corresponding time recorded before power failure can be saved. After power restoration, the metering function is automatically restored.
Remote Transmission Method	rs-485/M-Bus/NB-IoT/4-20mA Pulse/Gprs
Installation Position	Horizontal or vertical flange connection
Durability	Service life ≥10 years
